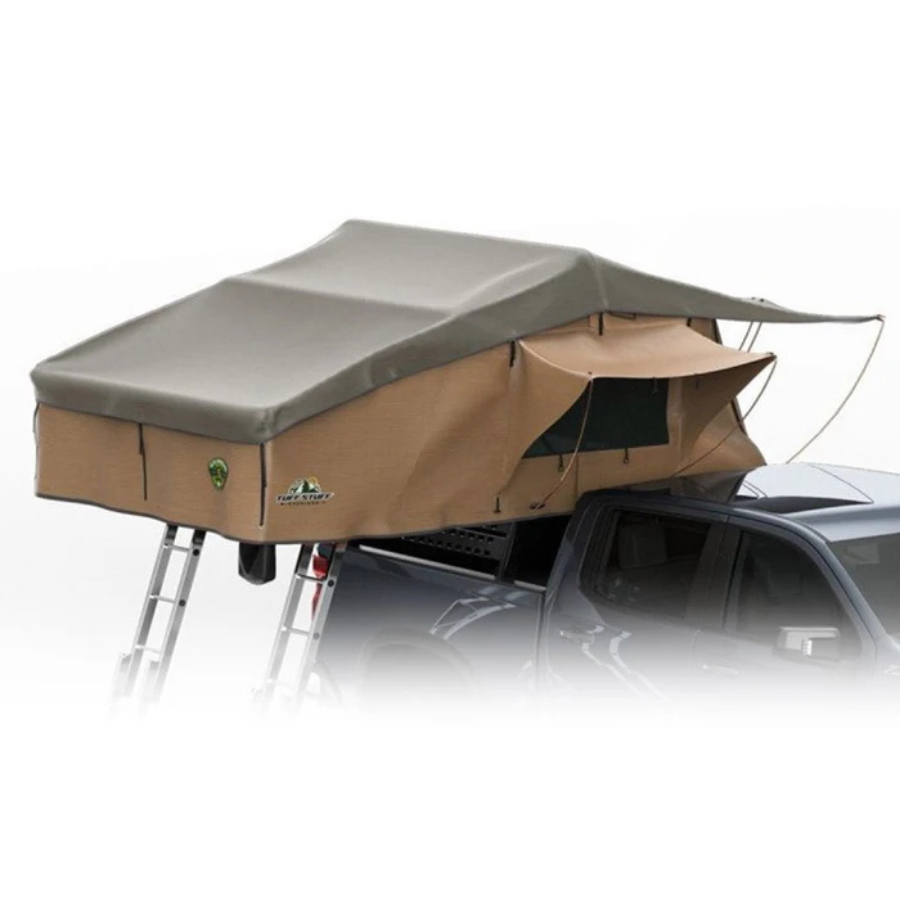

Tuff Stuff Overland Elite Rooftop Tent Includes Annex Room, 4-5 Person, Tan

The Tuff Stuff Elite Roof Top Tent is capable of sleeping 4-5 people. Enjoy the comfort of privacy with the removable split wall and separate entry doors. A removable lower annex room is included to provide an even more elite experience.

Features & Benefits

• Four-season tent with room for five people
• Massive 78 x 95-inch mattress (bigger than a California King) with a washable cover
• Manufactured from high-quality 280D poly-cotton windproof fabric
• Removable internal divider splits the tent into two separate spaces
• Heavy-duty YKK zippers
• Includes a poly-oxford 420D rain fly with the best water-shedding ability on the market
• Pull out the overhead veranda
• Unfolds from either side of the vehicle (side or rear)
• All aluminum frame, ladder, and roof rack mounts
• All necessary hardware for complete installation (including tools)
• Heavy-duty PVC driving cover

Includes

• 2 qty Sliding Ladders
• 2 qty Entry Doors Rainfly
• Black PVC Cover Annex Room w/ floor
• 2.75-inch mattress
• 1 qty of Shoe bags that slide into the tents railing for outdoor storage
• Under tent storage hammock that can be mounted inside or outside of the tent
• Installation of hardware and necessary tools

ACTUAL WEIGHT

• 194 lbs

WEIGHT CAPACITY

• 800 lbs


DIMENSIONS L/W/H

FOLDED CLOSED

• 79 x 48 x 16 inches

OPENED

• 79 x 96 x 52 inches

OPEN W/ OVERHANG

• 132 x 79 x 52 inches

DISTANCE BETWEEN MOUNTING RAILS

• 32 inches

SEASON

• 4 season

MATTRESS FOOTPRINT

• 78 x 96 inches
• 2.75-inch thick mattress

WINDOWS

• 6 including the doors
• "No see um" mosquito mesh w/ inner/outer cover for cold/wet weather
• Taped seams to prevent moisture from leaching in through the seams

ANNEX ROOM (INCLUDED)

• 113 x 90 inches
• 420D Oxford side walls & 1000D PVC floor
• Taped seams to prevent moisture from leaching in through the seams

Base

• Welded aluminum 2-inch frame w/ aluminum sheets (top & bottom)
• Insulated between joists to keep the warm air inside

Internal Frame

• 1" diameter aluminum poles
• 420D Oxford fabric coated

Tent Material

• 280G Cotton/Poly Rip-Stop
• Polyurethane-impregnated cotton/canvas for maximum waterproof/water shedding
• Taped seams to prevent moisture from leaching in through the seams

Rainfly

• 420D Oxford polyurethane coated for maximum waterproof/water shedding
• Taped seams to prevent moisture from leaching in through the seams

Driving Cover

• Black, 1000D PVC waterproof w/heavy-duty YKK zippers
• Zips on 3 sides/Slides into tent base on 4th side

• Install time is approx 1-2 hours with 2 people. Detailed instructions are included.
• The annex room zips on after the tent has been installed.
• All necessary spikes are included.
• All necessary hardware included (even the tools) to mount to most all roof racks (using the custom extruded aluminum channel system).
• The ideal mounting height for the tent would be 76″-78″ above the ground to allow for the ladder to extend and annex to hang to the ground.

**Tent mounts slide In the lower mounting rail to accommodate any crossbars (left to right on the vehicle) with a spread of up to 52". We recommend your crossbars (left to right) are no more than 45" apart for optimal support. The included lower brackets will accept up to a 3.25" wide crossbar- Crossbars wider than 3.25" will require new brackets to be fabricated. Please see photos of the provided mounting brackets for a better idea of what to expect.**

PLEASE DO NOT fabricate your mounting rails before you receive your tent. It never ends up well.

PLEASE NOTE: MUST PROVIDE YOUR OWN ROOF RACK OR BASE FOR THE TENT TO BOLT TO

CLICK HERE FOR THE INSTALLATION MANUAL
