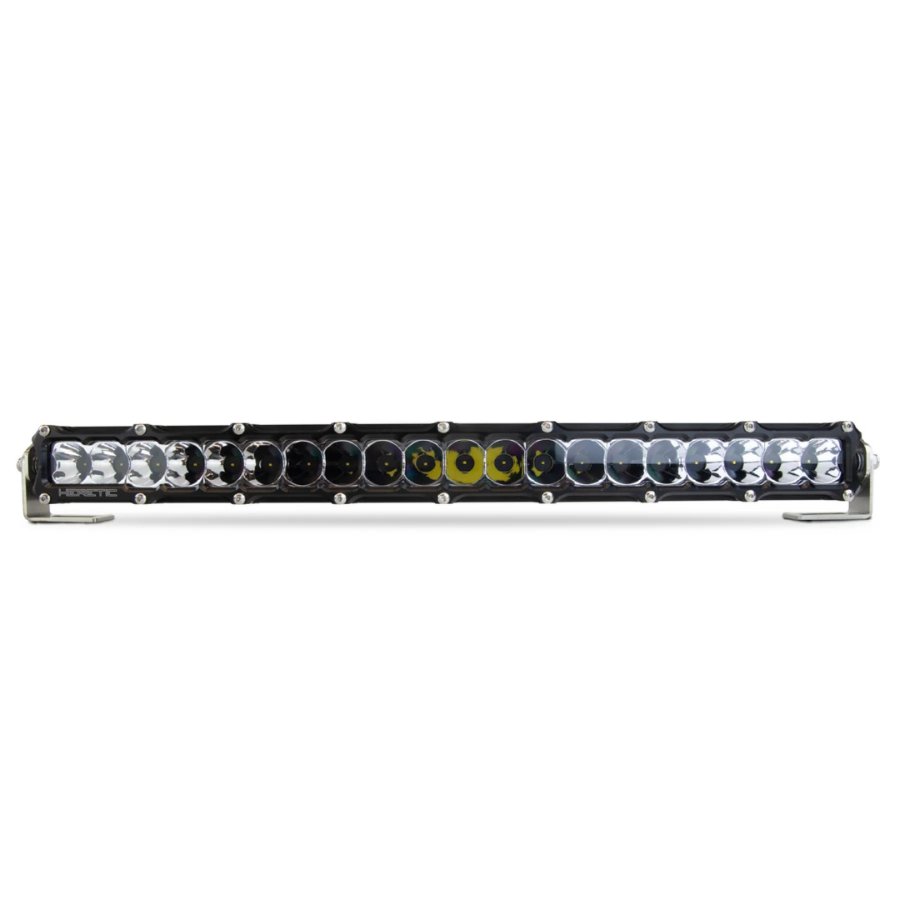

Heretic 20" LED Light Bar

The Heretic 20" LED light bar is one of the most rugged and reliable lights on the market. It is Designed, Assembled, Supported, and Shipped in Centerville, Utah. These high performance 6-series clear LED light bars are housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The 20” LED light bar is recommended for forward-facing applications in the bumpers of trucks, jeeps, SUVs, and UTVs. Its specifically optimized for clear night conditions. This light bar is best for clear night conditions. With the bracket this becomes a 22" LED light bar.

Features

• USA Patented 6061 CNC Aluminum Grade Billet Housing
• (20) 6-watt CREE LED
• IP68 rated Stainless Steel Mounts

Parts Sold Separately

• Wiring Harness
• Aftermarket Mount for Roof Rack Attachment
• Amber Lens Attachment

Constructed from a Single Block of Aluminum

Single block construction for a seamless design that keeps the elements out and lasts longer than typical aftermarket plastic lights.

BEYOND LUMENS

We use the highest quality circuit boards, reflectors, and LED bulbs to not only produce industry best lumen counts, but the best light shape on the market.

Heat Management

Our self regulating circuit boards paired with our aircraft grade aluminum housings with cooling fins create a more efficient heat transfer, allowing lights to function at full capacity.

American Owned an Operated

While it is virtually impossible to source every single component needed to create a world class LED light, we take pride that we manufacture the majority of our parts in house.  If we can't make it ourselves, we keep it as close to home as possible, with most parts coming from less than 1 hour from our shop!

Versatile Mounting Options

Mounts to most aftermarket bumpers, grille, and roof racks.

Shipping Weight: 5lbs
Type: 20” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Clear
Wattage: 120W
Amp Draw at 13.8V: 11.3A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 21” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 22” x D 1.5” x H “2.4
Lumens: 14520 lm

Lux At 10m: 2826 lx

Candela: 282600 cd

Beam Distance: 1063 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No
